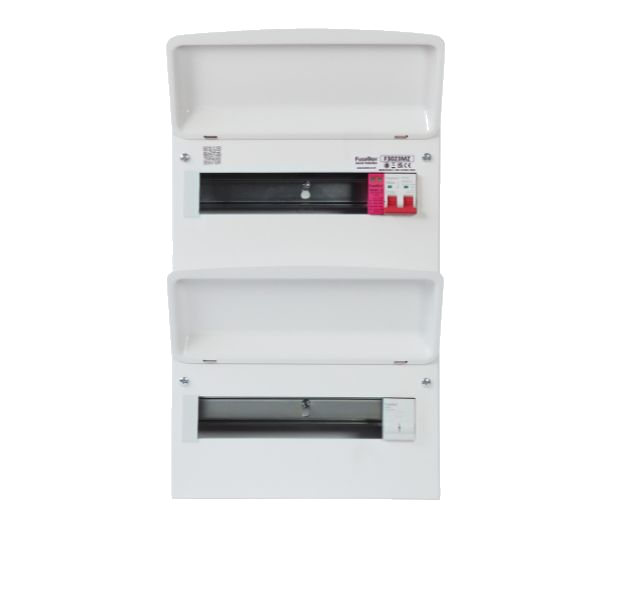

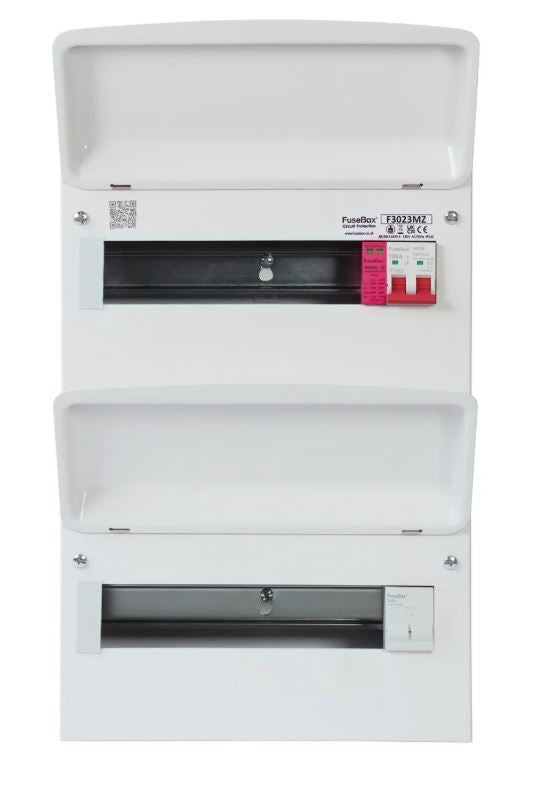

Fusebox F3023MZ 23-way (11/12) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2021MX)
No RCBO
$121.96
Sale price
$121.96
Regular price
$160.48
Skip to product information
Fusebox F3023MZ 23-way (11/12) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2021MX)
$121.96
Sale price
$121.96
Regular price
$160.48
SPECIFY RCBO SIZE IN THE BOX ABOVE
Product Details
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm ² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
| WEIGHT (1PC) | 8kg |
| DIMENSIONS (HxWxD)mm | 512x306x113 |
| DOUBLE BANK | Y |
| TAIL CLAMP INCLUDED (ACCF) | Y |
